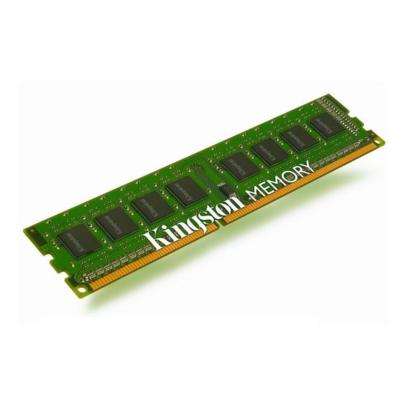

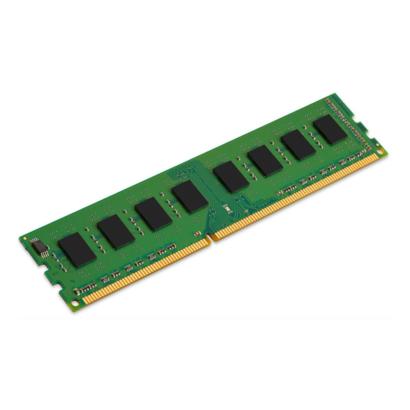

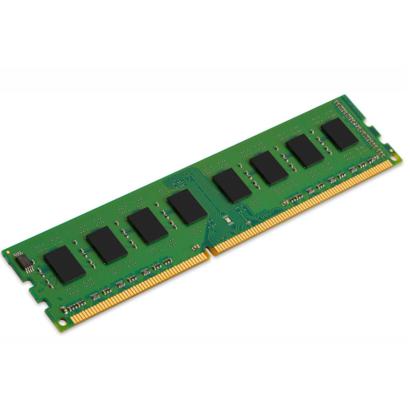

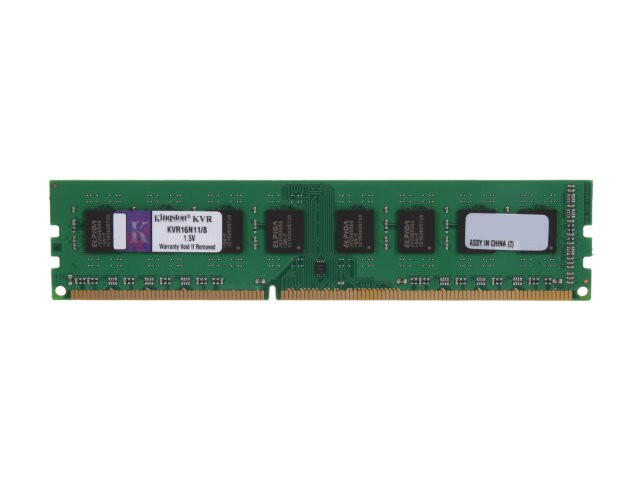

Kingston ValueRam 8GB DDR3-1600 KVR16N11/8

DDR3 SDRAM comes with a promise of a power consumption reduction of 40% compared to current commercial DDR2 modules, due to DDR3s 90 nm fabrication technology, allowing for lower operating currents and voltages (1.5 V, compared to DDR2s 1.8 V or DDRs 2.5 V). "Dual-gate" transistors will be used to reduce leakage of current DDR3s prefetch buffer width is 8 bit, whereas DDR2s is 4 bit, and DDRs is 2 bit.
Theoretically, these modules could transfer data at the effective clockrate of 800-1600MHz (for a single clock bandwidth of 400-800MHz), compared to DDR2s current range of 400-1066 MHz (200-533 MHz) or DDRs range of 200-600 MHz (100-300 MHz). To date, such bandwidth requirements have been mainly on the graphics market, where fast transfer of information between framebuffers is required.
DDR3 DIMMS have 240 pins, the same number as DDR2; however, the DIMMS are physically incompatible, owing to a different key notch location.
The GDDR3 memory, with a similar name but an entirely dissimilar technology, has been in use for several years in high-end graphic cards such as ones from NVIDIA or ATI.


Advantages compared to DDR2
Higher bandwidth (up to 1600 MHz)
Performance increase at low power
Longer battery life in laptops
Enhanced low power features and thermal design

Disadvantages compared to DDR2
Commonly higher CAS Latency
Lower MFIBS per Quad Cycle
