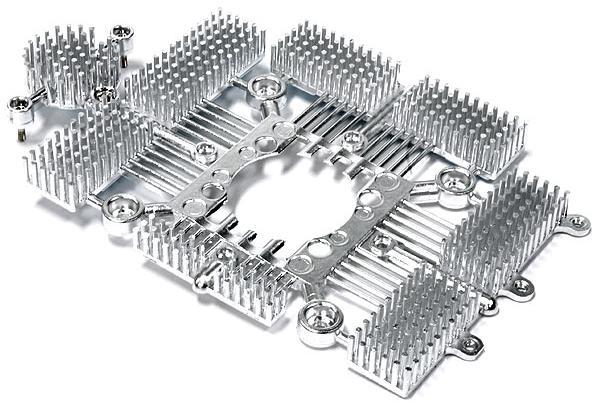

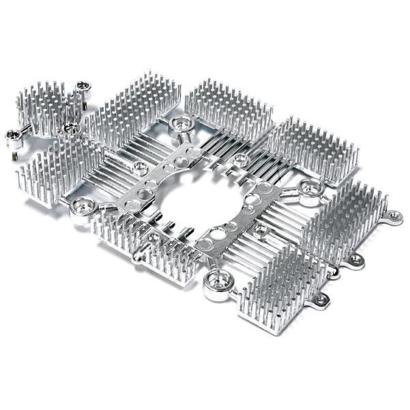

Zalman ZM-RHS88 RAM Heatsink for 8800 Series i.c.m. VF1000

- Made with aluminum for minimized weight and effective cooling.
- Noiseless and Durable.
- All-in-one multi-component cooling solution for RAM, FET and I/O chipset.
- High performance thermal tapes included for easy installation.

VGA Card Check.
Check your VGA Card and select the FET Heatsink according to the table below.
VGA Card FET Heatsink
NVIDIA Geforce 8800 Ultra/GTX FET Heatsink A
NVIDIA Geforce 8800 GTS FET Heatsink B

Components.
One (1) RAM Heatsink
One (1) FET Heatsink A-For 8800 Ultra/GTX
One (1) FET Heatsink B-For 8800 GTS
Four (4) Nipples for 8800 Series
Five (5) Fixing Nuts
Five (5) Fixing Nuts for SLI/CrossFire
Three (3) Fixing Bolts
Five (5) Springs
One (1) PVC Washer Plate
One (1) Thermal Grease
Four (4) Rubber Rings
One (1) User\’s Manual

Cautionary notes:
- This product is a RAM Heatsink for NVIDIA Geforce 8800 Series(except NVIDIA
Geforce 8800 GT). It must be used with Zalman\’s VF1000 LED.
- For stable performance while running the VGA card under full load (3D games etc.),
the VF1000 LED VGA cooler must be used in Normal Mode.
- The use of a fan positioned on the front side of the case and an exhaust fan
positioned on the rear side of the case is recommended for enhancement of product
performance.
- Zalman does not recommend overclocking of VGA cards.
