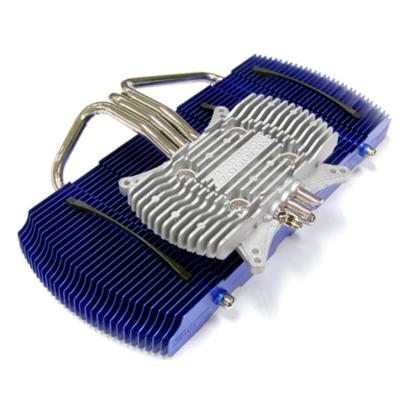

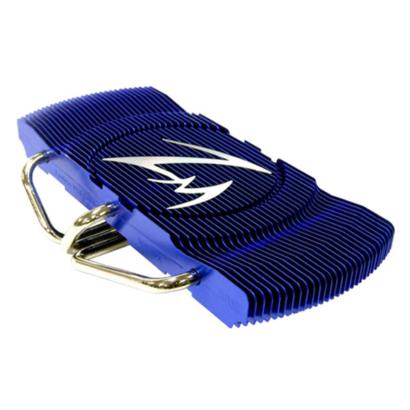

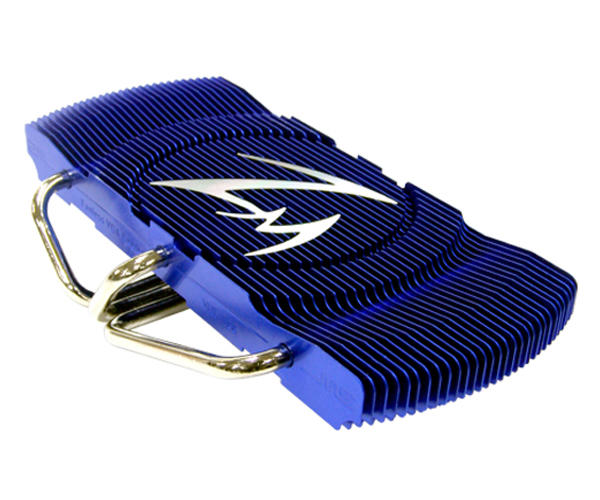

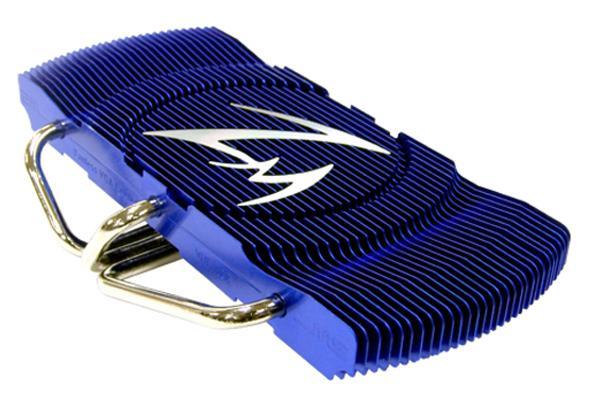

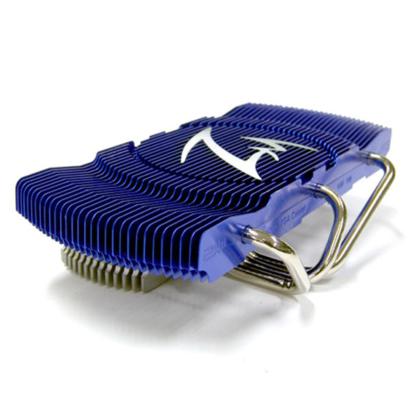

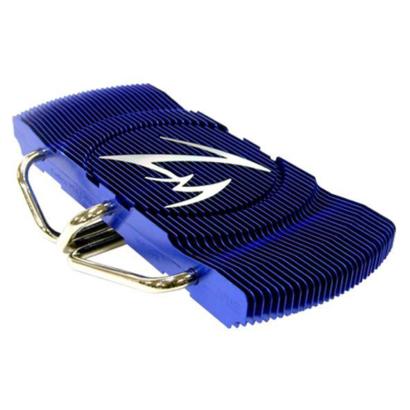

Features:
- Zalman\’s patented VFP (Variable Fin Profile) Fin Design maximizes cooling efficiency
and dissipation surface area for excellent performance.
- Fanless VNF100 does not emit any noise and can be used semi-permanently.
- Three high performance heatpipes provide maximized heat transfer.
- Thin aluminum fins (0.4mm) provide minimized heatsink weight, and prevents excessive
force on the VGA card.
- The heatsink positioned above the VGA card optimizes cooling efficiency and allows
compatibility with SLI and CrossFire setups.
- VGA RAM Heatsninks allow the cooling of VGA RAM.
- Improved installation structure provides easy installation and broad compatibility.
Specifications:
- Dimensions : 166(L) X 95(W) X 38.5(H)mm
- Weight : 180g
- Materials
Fins : Pure Aluminum (Anodized)
Base : Pure Aluminum
Front Heatsink : Aluminum
Heatpipes : Pure Copper (Nickel-Plated)
RAM Heatsink : Pure Aluminum
Geschikt voor:
ATI X1050 Series
ATI X1300 Series
ATI X1600 Series
ATI Radeon 9*** Series
ATI Radeon X*** Series (except X700 Pro, X850 Series)
NVIDIA Geforce4 MX Series
NVIDIA Geforce FX 5200
NVIDIA Geforce FX 5500
NVIDIA Geforce FX 5600 (FX 5700)
NVIDIA Geforce 6600 Series (except 6600 AGP Series)
NVIDIA Geforce 7300 Series (except 7300 AGP Series)
NVIDIA Geforce4 TI 4 Series
NVIDIA Geforce FX 5700(Ultra) Series
NVIDIA Geforce FX 5800 Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series)
ATI X1300 Series
ATI X1550 Series
ATI X1600 Series
NVIDIA Geforce 8600 Series
NVIDIA Geforce 8500 Series
NVIDIA Geforce 7600 GS Series
NVIDIA Geforce FX 5900 Series
NVIDIA Geforce FX 5950 Series
ATI X1800 XL Series
NVIDIA Geforce 7950 Series (except GX2 Series)
NVIDIA Geforce 7900 Series (except GTO, GTX Series)
NVIDIA Geforce 7800 Series (except GS, GTX Series)
NVIDIA Geforce 7600 Series (except 7600 AGP Series)
NVIDIA Geforce 7300 Series (except 7300 AGP Series)
NVIDIA Geforce 6800 Series
