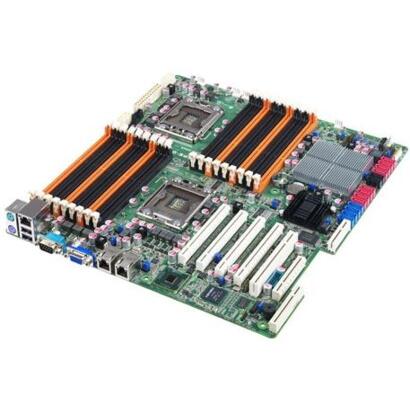

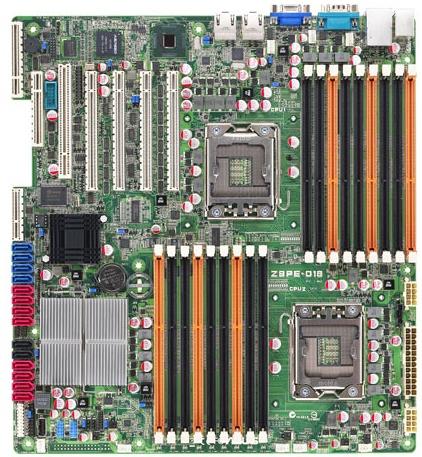

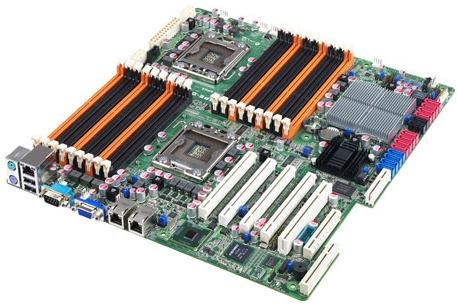

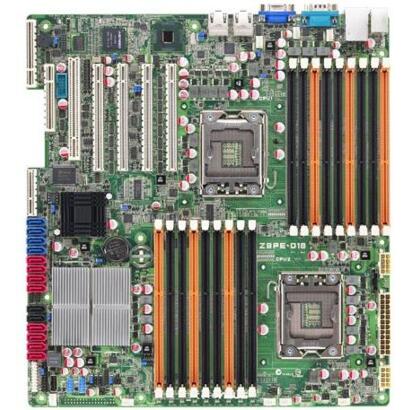

The ASUS Z8PE-D18 server motherboard delivers significant computing capability with 18 DIMM slots and high expandability with 6 expansion slots to cater to the most demanding tasks and upgrades in the future.
Specificaties:
- Processor / System Bus:
2 x Socket 1366
Intel® Xeon® W5500 Series (130W)
Intel® Xeon® X5500 Series (95W)
Intel® Xeon® E5500 Series (80W)
Intel® Xeon® L5500 Series (60W/38W)
QPI 4.8 /5.86 /6.4 GT/s
- Core Logic:
Intel® 5520 chipset IOH
Intel® ICH10R I/O Controller
- Form Factor: SSI EEB 3.61 /12" x 13"
- ASUS Features:
Rack Ready (Rack and Pedestal dual use)
ASWM2.0
FAN speed control
- Memory:
Total Slots: 18 (3-channel per CPU, 9-DIMM per CPU)
Capacity: Maximum up to 144GB (RDIMM)**, Maximum up to 48GB (UDIMM)
Memory Type: DDR3 800/1066/1333 Reg DIMM/ Unbuffered DIMM with ECC
Memory Size: 1GB 2GB 4GB 8GB * (RDIMM); 1GB 2GB 4GB (UDIMM)
- Expansion Slots (follow SSI Location #):
Total PCI/PCI-X/PCI-E Slots: 6
Slot Location 1: 1 * PCI-E x8 (Gen1 x4 Link) (Auto disable if PIKE slot is occupied)
Slot Location 2: 1 * PCI32
Slot Location 3: 1 * PCI-E x16 (Gen2 x16 Link) (Auto switch to x8 Link if slot 4 is occupied)
Slot Location 4: 1 * PCI-E x16 (Gen2 x8 Link)
Slot Location 5: 1 * PCI-E x16 (Gen2 x16 Link) (Auto turn off if slot 6 is occupied)
Slot Location 6: 1 * PCI-E x16 (Gen2 x16 Link for 1U Full-Height/Full-Length Card) (Auto turn off if slot 5 is occupied, MIO supported)
Additional Slot 1: 1 * PIKE Slot for Stroage expansion
- SATA Controller:
Intel® ICH10R, 6 SATA2 300MB/s ports , Intel Matrix, torage (for Windows only) , (Support software RAID 0, 1, 10 & 5), LSI® MegaRAID (for Linux/Windows), (Support software RAID 0, 1, 10)
- SAS Controller:
Optional:
ASUS PIKE 1064E 4-port SAS RAID card
Asus PIKE 1068E 8-port SAS RAID card
Asus PIKE 1078 8-port SAS HW RAID card
ASUS PIKE 6480 8-port SAS RAID card
- Networking: LAN: 1 * Dual Port Intel 82576EB (VMDq) + 1 * Mgmt LAN
- Graphic: VGA: Aspeed AST2050 8MB
