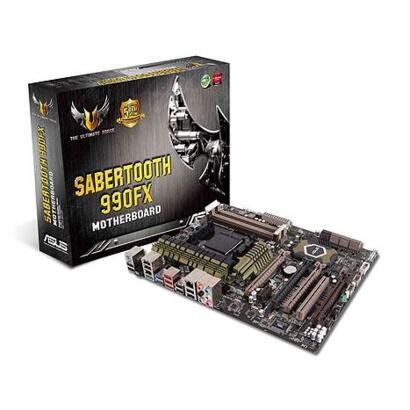

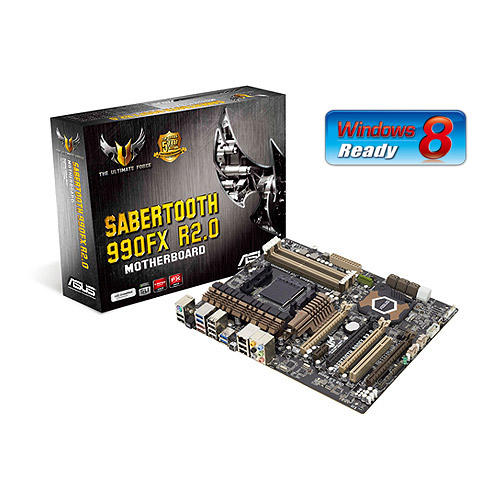

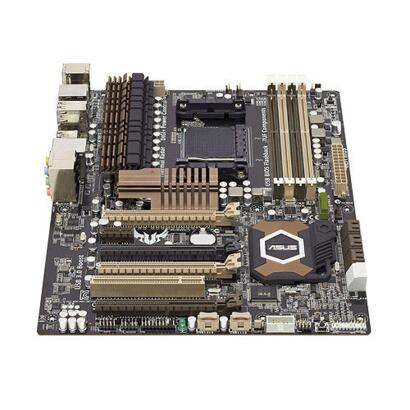

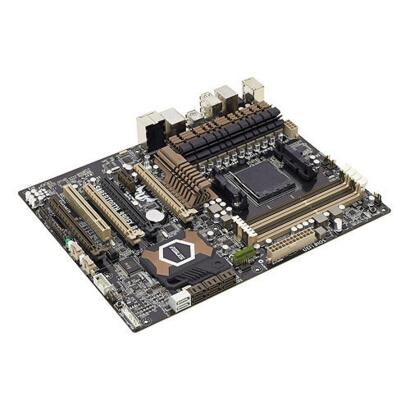

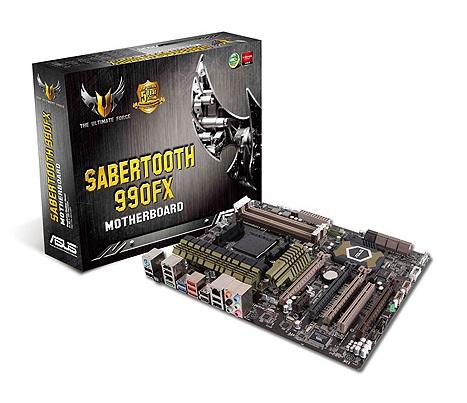

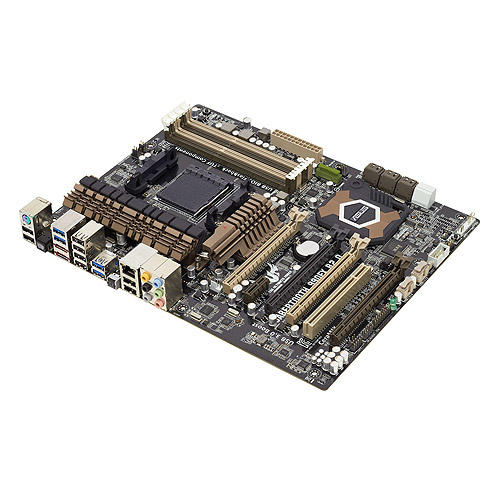

Asus Sabertooth 990FX R2, CF+SLI, DDR3,S6,1394,PCI-E, AM3+

SABERTOOTH 990FX. AMD 990FX(AM3+) Military-Grade Motherboard with Aerospace-Grade CeraM!X Cooling Tech.
- TUF CeraM!X Heatsink Coating Tech. 50% Larger area for heat dissipation with the revolutionary ceramics-coating technology
- TUF Thermal Radar. Real Time Temp Detection and Heat Removal
- DIGI+ VRM. Herald the Arrival of a New Digital Power Design Era
- TUF Components [Alloy Choke, Cap. & MOSFET; Certified by Military-standard]. Certified for Tough Duty
- E.S.P. [Efficient Switching Power Design]. Optimal power efficiency for key components.

Specificaties:
- CPU: AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors. Supports AM3+ 32 nm CPU
- Chipset: AMD 990FX/SB950
- Memory: 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture
- Multi-GPU Support:
• Supports NVIDIA® Quad-GPU SLI™ Technology
• Supports AMD Quad-GPU CrossFireX™ Technology
- Expansion Slots:
• 3 x PCIe 2.0 x16 (dual x16 or x16, x8, x8) *1
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 1 x PCIe 2.0 x1
• 1 x PCI
- Storage:
AMD SB950 controller :
• 6 x SATA 6Gb/s port(s), brown
• Support Raid 0, 1, 5, 10
JMicron® JMB362 controller:
• 2 x SATA 3Gb/s port(s), black
• 1 x Power eSATA 3Gb/s port(s), green
• 1 x eSATA 3Gb/s port(s), red
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- IEEE 1394:
• VIA® 6308P controller
• 2 x IEEE 1394a port(s)
• (1 at mid-board, 1 at back panel)

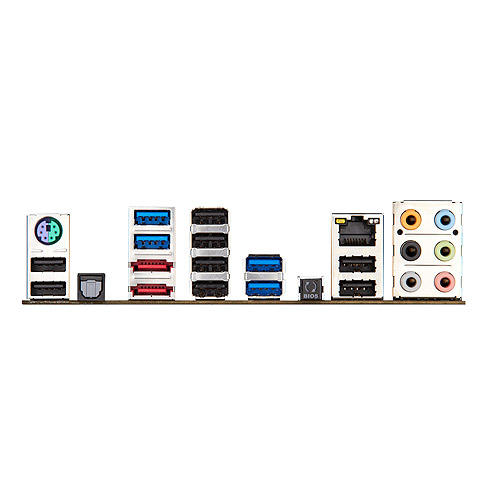

- USB Ports:
• ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
• AMD SB950 controller : 14 x USB 2.0 port(s) (10 at back panel, black+red, 4 at mid-board)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
