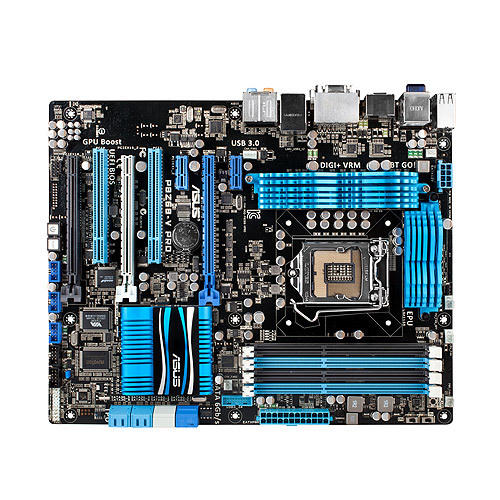

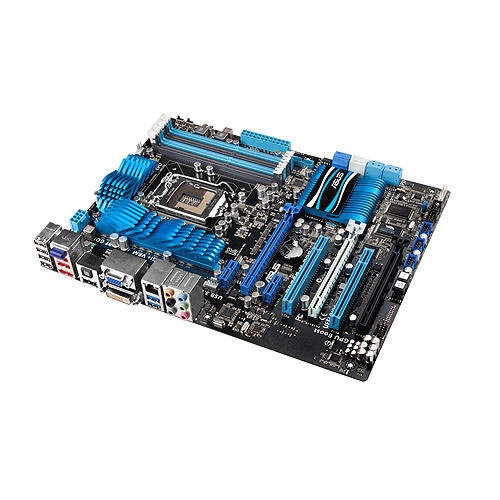

Your dream Z68 motherboard, with full support for 3X faster video conversion and universal switchable graphics.
- Dual Intelligent Processors 2 with DIGI+ VRM Digital Power Design
- UEFI BIOS (EZ Mode). Flexible & Easy BIOS Interface
- LucidLogix® Virtu (Universal Switchable Graphics)
- Auto Switching between Integrated Graphics and NVIDIA/AMD Cards
- Intel® Smart Response Technology - SSD Speed with HDD Capacity
- BT GO! (Bluetooth). Diverse BT Enjoyment, New Technology Lifestyle
- GPU Boost. Push the Limits with iGPU Level Up!
- Quad USB 3.0 Support - Double Access, Double Convenience
- Quad-GPU SLI and Quad-GPU CrossFireX Support!
Specifications:
- CPU: Intel® Socket 1155 The 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU
- Chipset: Intel® Z68
- Memory : 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture
- Graphic:
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1748 MB
- Multi-GPU Support:
• Supports NVIDIA® Quad-GPU SLI™ Technology
• Supports AMD® Quad-GPU CrossFireX™ Technology
- Expansion Slots:
• 2 x PCIe 2.0 x16 (x16 or dual x8)
• 1 x PCIe 2.0 x16 (x4 mode, black) *1
• 2 x PCIe x1
• 2 x PCI
• 2 x PCI
- Storage:
Intel® Z68 chipset :
• 2 x SATA 6Gb/s port(s), gray
• 4 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 5, 10
• Support Intel® Smart Response Technology
JMicron® JMB362 controller : *2
• 1 x eSATA 3G port(s), red
- LAN: Intel® 82579, 1 x Gigabit LAN ControllerI
- Bluetooth:
• Bluetooth V2.1+EDR
• ASUS BT GO! Utility
- IEEE 1394:
• VIA® 6308P controller
• 2 x IEEE 1394a port(s) (2 at mid-board)

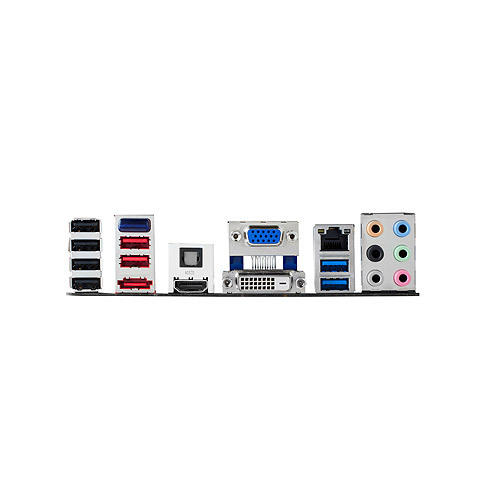

- USB Ports:
• ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
• Intel® Z68 chipset : 12 x USB 2.0 port(s) (6 at back panel, black+red, 6 at mid-board)
