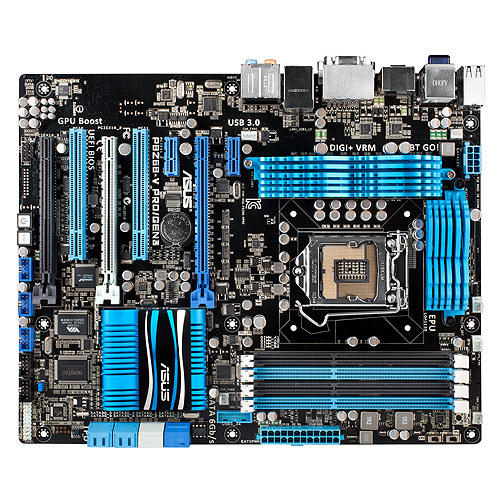

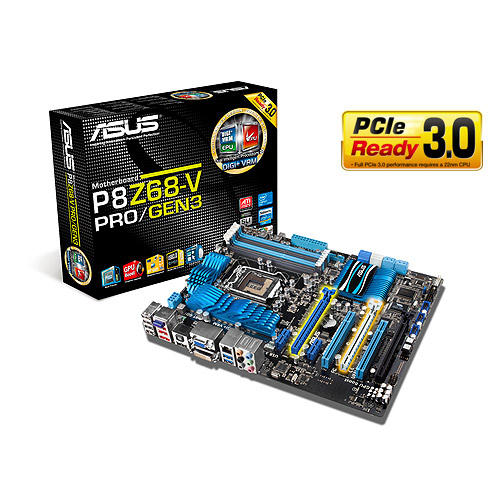

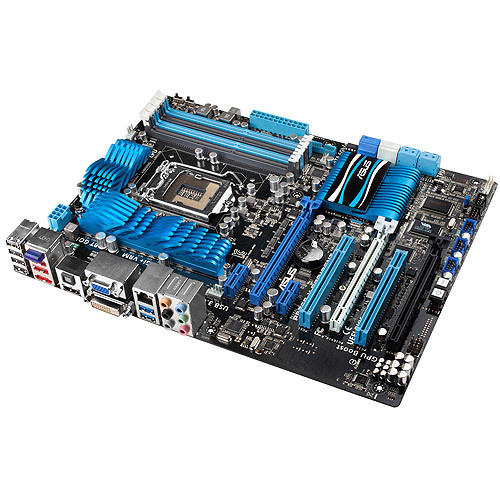

P8Z68-V PRO/GEN3. Fully PCI-Express 3.0 Ready, Intel Z68 motherboard. USB 3.0 Boost includes world\'s first UASP support.
- Dual Intelligent Processors 2 with DIGI+ VRM Digital Power Design
- UEFI BIOS (EZ Mode). Flexible & Easy BIOS Interface
- LucidLogix® Virtu (Universal Switchable Graphics). Auto Switching between Integrated Graphics and NVIDIA/AMD Cards
- Intel® Smart Response Technology. SSD Speed with HDD Capacity
- BT GO! (Bluetooth). Diverse BT Enjoyment, New Technology Lifestyle
- GPU Boost. Push the Limits with iGPU Level Up!
- Quad USB 3.0/SATA 6Gb/s Support. Double Access, Double Convenience
- Quad-GPU SLI and Quad-GPU CrossFireX Support!
Specifications:
- CPU: Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
- Chipset: Intel® Z68
- Memory : 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture
- Graphic:
Integrated Graphics Processor
• Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
• Maximum shared memory of 1748 MB
- Multi-GPU Support:
• Supports NVIDIA® Quad-GPU SLI™ Technology
• Supports AMD Quad-GPU CrossFireX™ Technology
• Supports LucidLogix® Virtu™ Technology
- Expansion Slots:
• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *1
• 1 x PCIe 2.0 x16 (x4 mode, black) *2
• 2 x PCIe x1
• 2 x PCI
- Storage:
Intel® Z68 chipset :
• 2 x SATA 6Gb/s port(s), gray
• 4 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 5, 10
• Support Intel® Smart Response Technology on 2nd generation Intel® Core™ processor family
Marvell® PCIe SATA 6Gb/s controller : *3
• 2 x SATA 6Gb/s port(s), navy blue
JMicron® JMB362 controller : *3
• 1 x eSATA 3Gb/s port(s), red
- LAN: Intel® 82579, 1 x Gigabit LAN Controller(s)
- Bluetooth:
• Bluetooth V2.1+EDR
• ASUS BT GO! Utility
- IEEE 1394:
• VIA® 6308P controller
• 2 x IEEE 1394a port(s) (2 at mid-board)

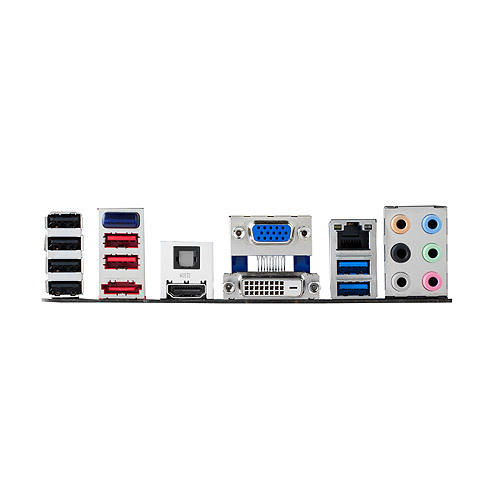

- USB Ports:
• ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
• Intel® Z68 chipset : 12 x USB 2.0 port(s) (6 at back panel, black+red, 6 at mid-board)
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note:
*1: Actual PCIe 3.0 speed varies with the installed CPU type.
*2: The PCIe x16_3 slot shares bandwidth with PCIe x1_1 slot, PCIe x1_2 slot, USB3_34 and eSATA. The PCIe x16_3 default setting is in x1 mode.
*3: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
