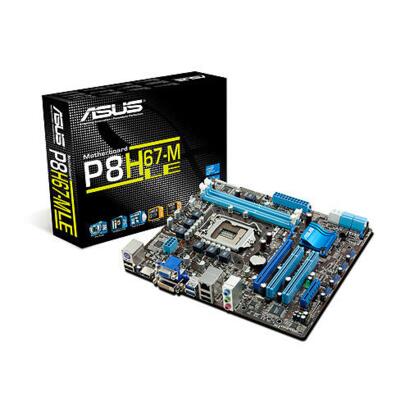

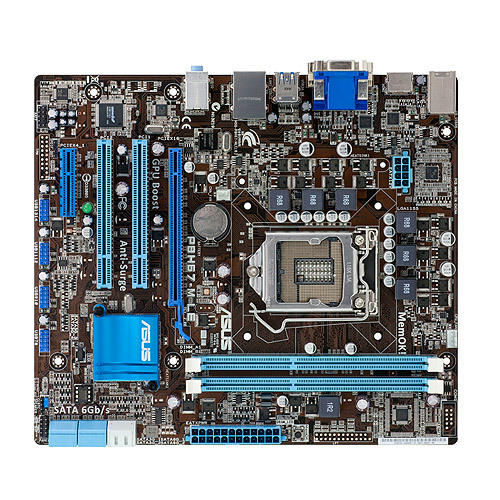

P8H67-M LE. Faster Data Transfer with True USB 3.0 and SATA 6Gb/s on Intel H67 Platform.
- ASUS GPU Boost. Go to the Limit with iGPU Level Up!
- Full-time Power Guardian. Anti-Surge Protection Makes System Free From Risk!
- EFI BIOS, EZ Mode. Flexible & Easy BIOS Interface.
Specifications:
- CPU: Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Support: Intel® 32nm CPU
- Chipset: Intel® H67 Express Chipset
- Memory: 2 x DIMM, Max. 16 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory. Dual Channel memory architecture
- Expansion Slots:
• 1 x PCIe 2.0 x16
• 1 x PCIe 2.0 x4
• 2 x PCI
- VGA:
• Multi-VGA Output Support: HDMI, DVI-D and D-SUB Ports
• HDMI with Max. Resolution : 1920 X 1200 @60Hz
• DVI with Max. Resolution : 1920 X 1200 @60Hz
• D-SUB with Max. Resolution : 2048 X 1536 @75Hz
- Storage:
Southbridge
• 2 xSATA 6.0 Gb/s ports (Gray)
• 4 xSATA 3.0 Gb/s Ports (Blue)
- LAN: Realtek RTL8112L Gigabit LAN PCIe Controller
- USB:
Chipset built-in
• 2 x USB 3.0/2.0 ports (2 Ports at Back Panel)
Chipset built-in
• 12 x USB 2.0/1.1 ports (8 Ports at Mid-Board, 4 Ports at Back Panel)
- Form Factor: uATX Form Factor 9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm )
