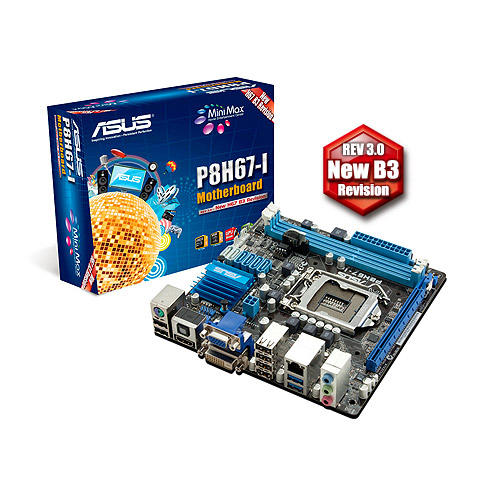

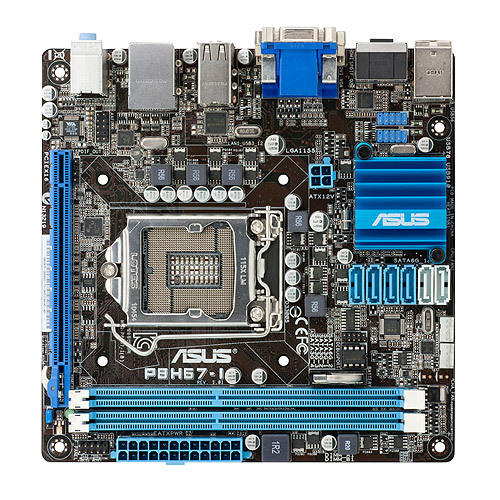

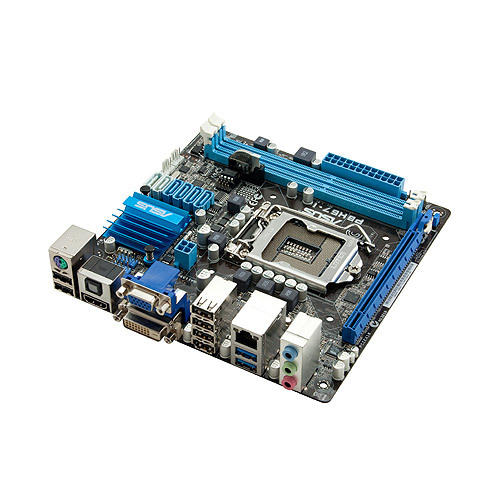

Asus P8H67-I V3,VGA,USB3.0,SATA6,D-DDR3,PCI-E,Mini ITX,S1155

P8H67-I. REV 3.0 - New H67 B3 Revision. Compact but powerful with GPU Boost
- GPU Boost. Go to the Limit with iGPU Level Up!
- UEFI BIOS (EZ Mode). Flexible & Easy BIOS Interface
- USB 3.0 / SATA 6G. High Speed Transfer Technology

Specifications:
- CPU: Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors. Supports Intel® 32 nm CPU
- Chipset: Intel® H67(B3)
- Memory: 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory. Dual Channel Memory Architecture
- Graphic:
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
• Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 2048 x 1530 @ 75 Hz
Maximum shared memory of 1748 MB
- Expansion Slots: 1 x PCIe 2.0 x16
- Storage:
• Intel® H67(B3) chipset :
• 2 x SATA 6Gb/s port(s), gray
• 4 x SATA 3Gb/s port(s), blue
• Support Raid 0, 1, 5, 10
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)
- USB Ports:
• Built-in Controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
• Built-in Controller : 10 x USB 2.0 port(s) (6 at back panel, black, 4 at mid-board)
- Form Factor: Mini ITX Form Factor 6.75 inch x 6.75 inch ( 17.1 cm x 17.1 cm )
