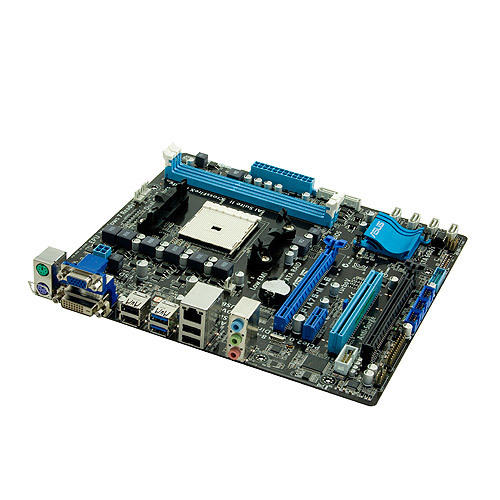

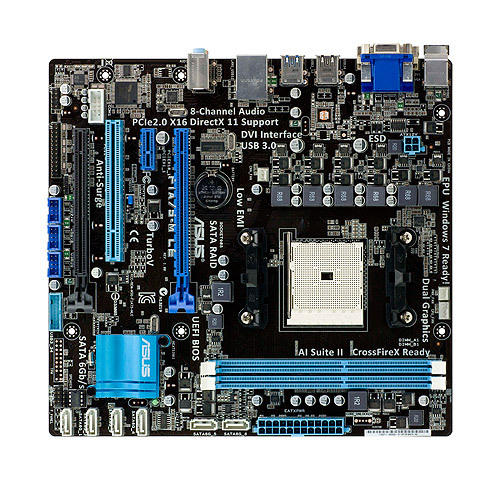

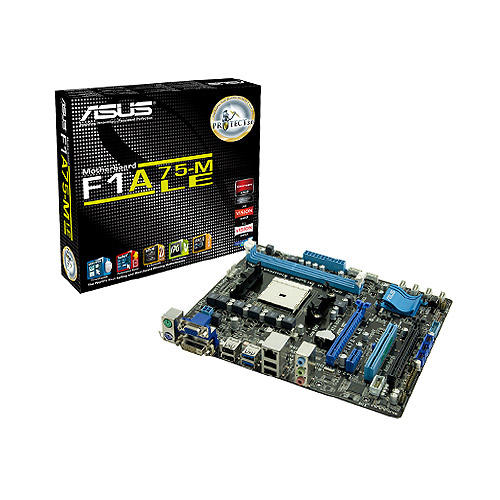

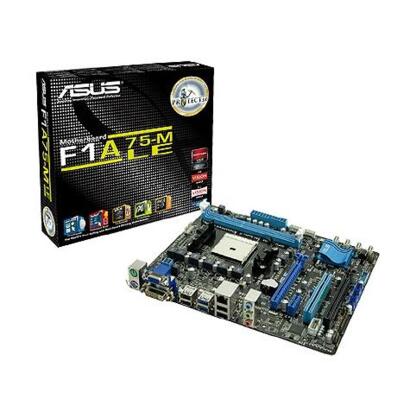

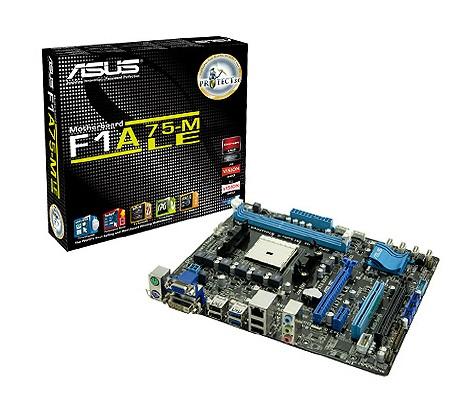

F1A75-M LE. Enjoy Graphical BIOS Control & Superb Graphics on AMD A75 Platform
- UEFI BIOS. EZ Mode - Flexible & Easy BIOS Interface
- AI Suite II. One-stop Access to Innovative ASUS Features
- USB 3.0 & SATA 6Gb/s Support - Double Access, Double Convenience
- Multi-GPU CrossFireX Support!
Specifications:
- CPU: AMD Socket FM1 A- Series/E2- Series Accelerated Processors. Supports CPU up to 4 cores
- Chipset AMD A75 FCH (Hudson D3)
- Memory: 2 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
- Graphic:
• Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
• Multi-VGA output support : DVI/RGB ports
• Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
• AMD® Dual Graphics technology support *1
• Supports DirectX 11
- Multi-GPU Support: Supports AMD CrossFireX™ Technology
- Expansion Slots:
• 1 x PCIe 2.0 x16 (blue)
• 1 x PCIe 2.0 x16 (x4 mode, black)
• 1 x PCIe 2.0 x1
• 1 x PCI
- Storage:
AMD A75 FCH (Hudson D3) chipset : *2
• 6 x SATA 6Gb/s port(s), gray
• Support Raid 0, 1, 10, JBOD
- LAN: Realtek® 8111E , 1 x Gigabit LAN Controller(s)

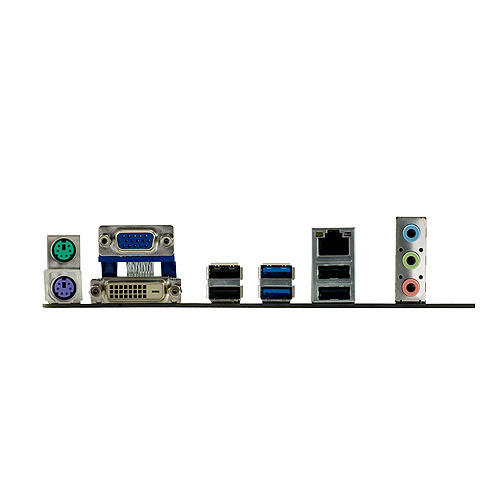

- USB Ports:
• AMD A75 FCH (Hudson D3) chipset : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
• AMD A75 FCH (Hudson D3) chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
- Form Factor: uATX Form Factor 9.6 inch x 9 inch ( 24.4 cm x 22.9 cm )
