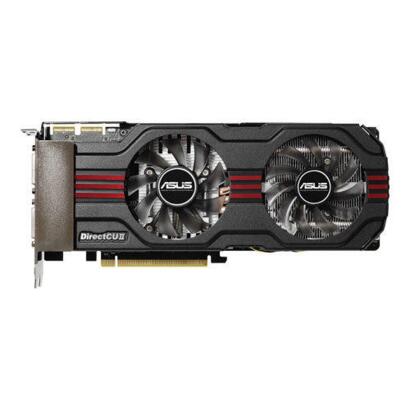

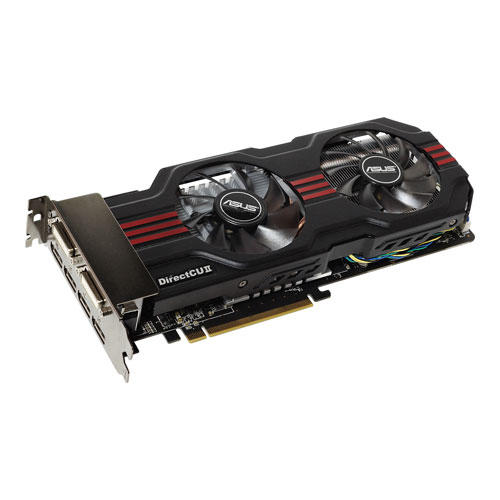

EAH6950 DCII/2DI4S/1GD5. ASUS HD 6950 Series graphics cards with dual-fan cooling performance.
- Speed up heat dissipation with doubled airflow via exclusive DirectCU with dual fan design
- Expand your visual horizon across six monitors with four native DisplayPort outputs
- Super Alloy Power technology delivers 15% Performance boost, 2.5 longer lifespan, 35C cooler operation
- Crank up 50% faster clock speed with exclusive Voltage Tweak
Specifications:
- Graphics Engine: AMD Radeon HD 6950
- Bus Standard: PCI Express 2.1
- Video Memory: GDDR5 1GB
- Engine Clock: 810 MHz
- Memory Clock: 5000 MHz ( 1250 MHz GDDR5 )
- RAMDAC: 400 MHz
- Memory Interface: 256-bit
- Resolution:
• D-Sub Max Resolution : 2048x1536
• DVI Max Resolution : 2560x1600

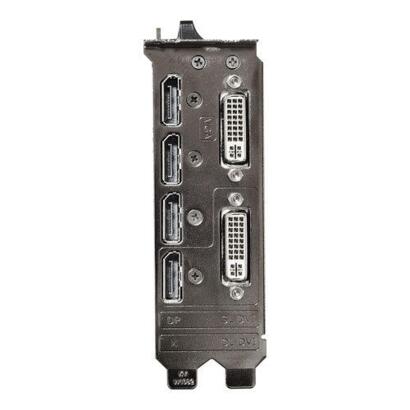

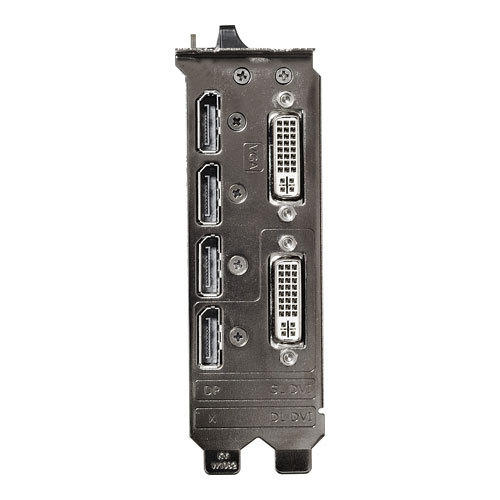

- Interface:
• DVI Output : Yes x 1 (DVI-I),Yes x 1 (DVI-D)
• HDMI Output : Yes x 1 (via DVI to HDMI adaptor x 1 )
• Display Port : Yes x 4 (Regular DP)
• HDCP Support : Yes
- Accessories:
• 1 x CrossFire cable
• 1 x Power cable
• 1 x DVI to HDMI adaptor
- Software: ASUS Utilities & Driver
- ASUS Features: DirectCU Series
- Dimensions: 11.7 " x 5 " Inch
- Note: 8pin + 6pin Power connector is required for best performance
